Many companies depend on various software tools to manage their internal operations. As these companies scale, they tend to build custom internal tools to reduce manual processes and manage their databases in a secure manner. Building these internal tools in-house can become cumbersome, difficult to manage, and error-prone, making it challenging for engineers to run critical operations efficiently.
In this article, we'll walk through how to set up a dashboard for managing a MariaDB database using Airplane Tasks and Views.
Benefits of using Airplane
There are several benefits to using Airplane for managing a MariaDB database:
- Centralized overview - Airplane offers a high-level, centralized overview of an organization's internal tools. If a user requires an overview of all databases, they can build internal dashboards for each database, and monitor them together in Airplane. By doing so, users do not need to manage multiple GUI applications to understand the health of their various databases.
- Strong customization capabilities - Airplane allows users to customize their Airplane Views easily by using pre-built components or customizing components using code. Using Airplane, engineers have greater control over their Views features. This high level of customization allows users to tailor their Views to fit their organization's needs, making it easy to build complex UIs.
- Easy integration with other tools - Airplane makes it easy to integrate a View with other tools within a user's organization. With its robust API, Airplane can connect to other systems, allowing users to streamline their workflows and increase efficiency. This easy integration also allows users to monitor and manage all of their internal tools and systems from a single, unified interface in Airplane.
Let's now learn how to implement a MariaDB GUI using Airplane Views. We will load data into our desired tables, create Airplane Tasks that manipulate this data, and build an Airplane View that brings all of these tasks together.
To complete the tutorial, ensure you have the following:
- An Airplane account
- The Airplane CLI, which automates the process of creating new scripts and Views
- Node.js version 18 and npm version 6. Download Node.js using Node Version Manager (nvm). npm should be automatically installed with Node.js
- A MariaDB database
You can use either a local MariaDB database or one hosted by a cloud provider. If you're deploying to a cloud provider, follow the instructions for Azure, AWS, or Google Cloud. If you're using a local database, simply set the local server details.
Using either method, start by creating a database called
Creating the database tables
We'll create three tables in the database to serve as demo data in our GUI. This data is a subset of the
jaffle_shop data set created by dbt Labs. The first table,
customers, contains customers' first and last names. The second is an
orders table containing customer ID, order status, and date columns. The last table is a
payments table with order ID, payment method, and amount columns.
Copy and paste the snippet below into the MySQL CLI and run it to create the three tables:
After creating these tables, we'll need to seed them with data. Use the command below to insert data into the tables:
Now that we have created our database tables, let's start using Airplane.
Creating an Airplane View
Let's now create an Airplane View. Ensure that an Airplane account has been created and that the CLI has been installed. The CLI will communicate with the Airplane backend, so we must authenticate it. Run the command below to start the authentication process:
The command above generates a link to obtain a token that we'll use for authentication. Open the link in the browser where we are logged in to Airplane to obtain the token. Paste the token in the provided field in the Airplane CLI to complete the authentication.
We can now proceed to create a directory where the Airplane View will live. Use the command below to create and navigate to the directory:
Next, use the following command to initialize a new View:
The Airplane CLI will prompt us to enter the name of the View. Enter a name like
mariadb-gui. After entering the name, the Airplane CLI will create a simple React.js app with
Let's run the following command to see the output of the initialized view:
The command above starts a development server and makes the View available in a web environment called the Airplane Studio. We can access this environment by navigating to
https://app.airplane.dev/studio?__airplane_host=http://localhost:4000&__env=prod. The output of the
airplane dev command is shown below:

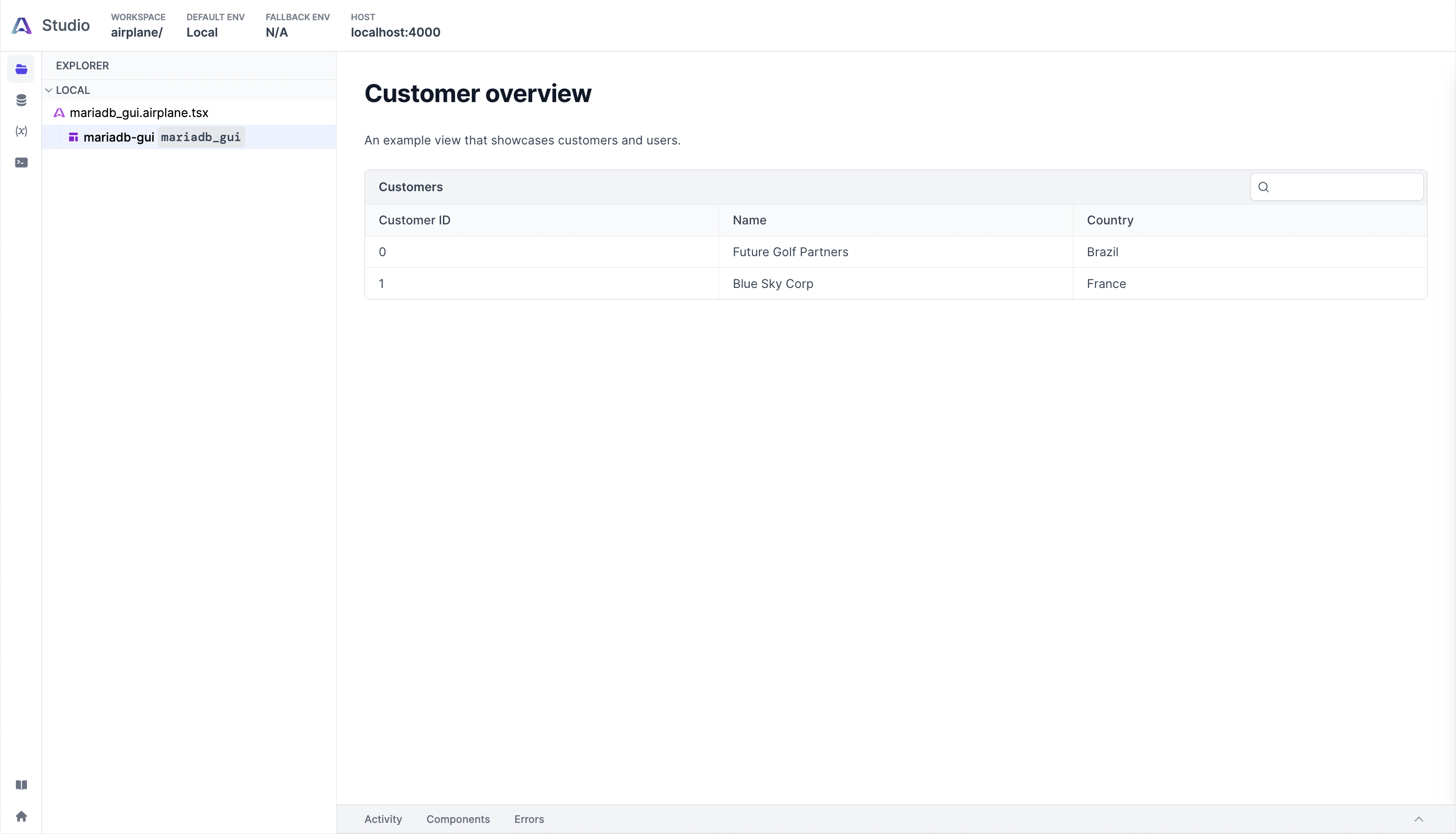

If we open Airplane Studio in the browser, we should see the following output:
The customer overview table above is generated from the default contents of the
mariadb_gui.view.tsx file. We'll need to modify this file to include tables, buttons, and forms for performing CRUD operations on the tables in the MariaDB database.
Let's now connect our database to Airplane.
Connecting the database to Airplane

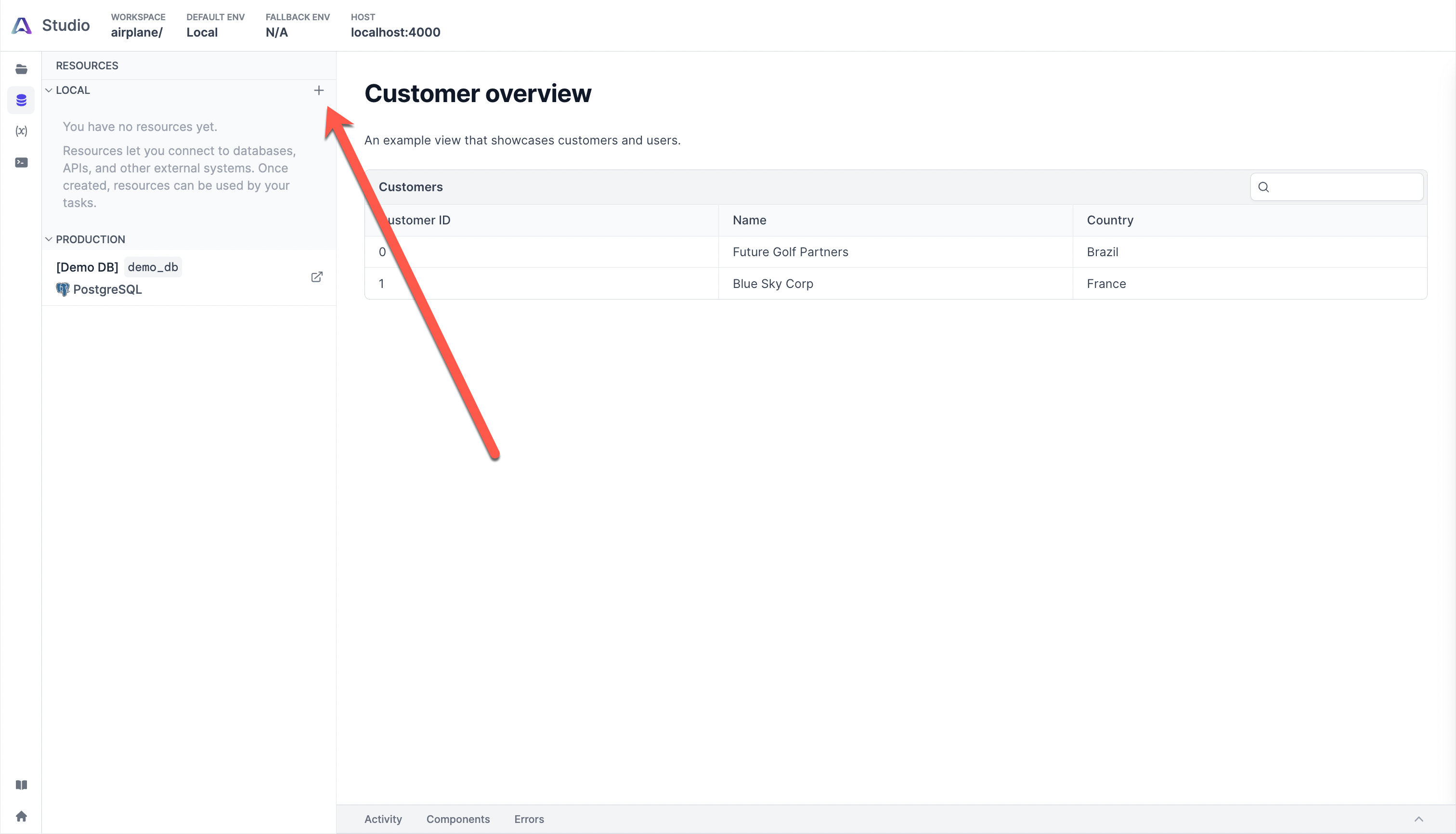

To make the database available to Airplane, let's navigate to the Resources page in Airplane Studio, represented by the database icon in the left navigation menu. After the page loads, click the plus button to add a new local resource:
When prompted to select a Resource type, MariaDB is not an available option. But since MariaDB is an open-source database that is compatible with MySQL, a MariaDB server can work with a MySQL client.

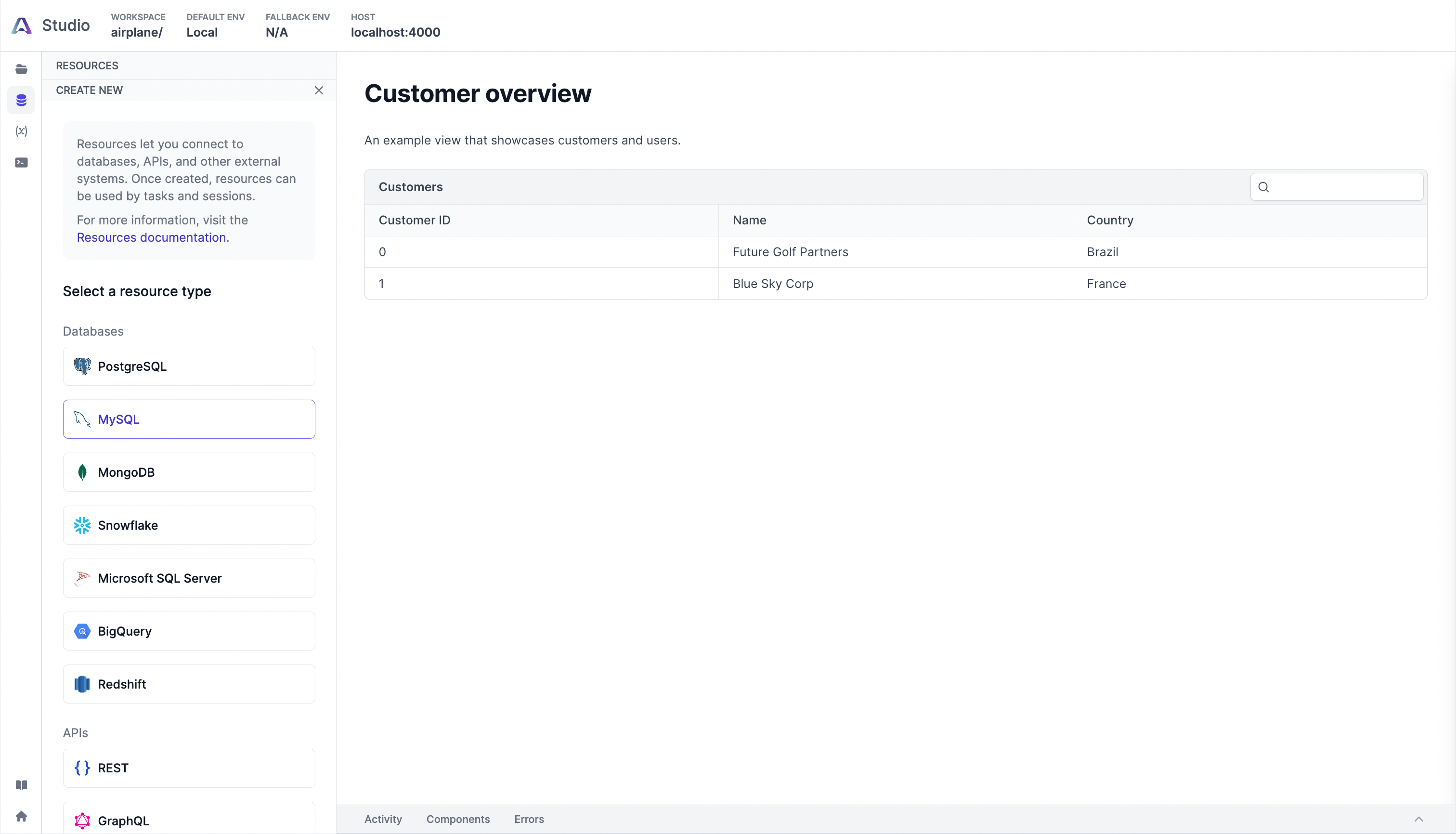

Click MySQL to choose it as the database:

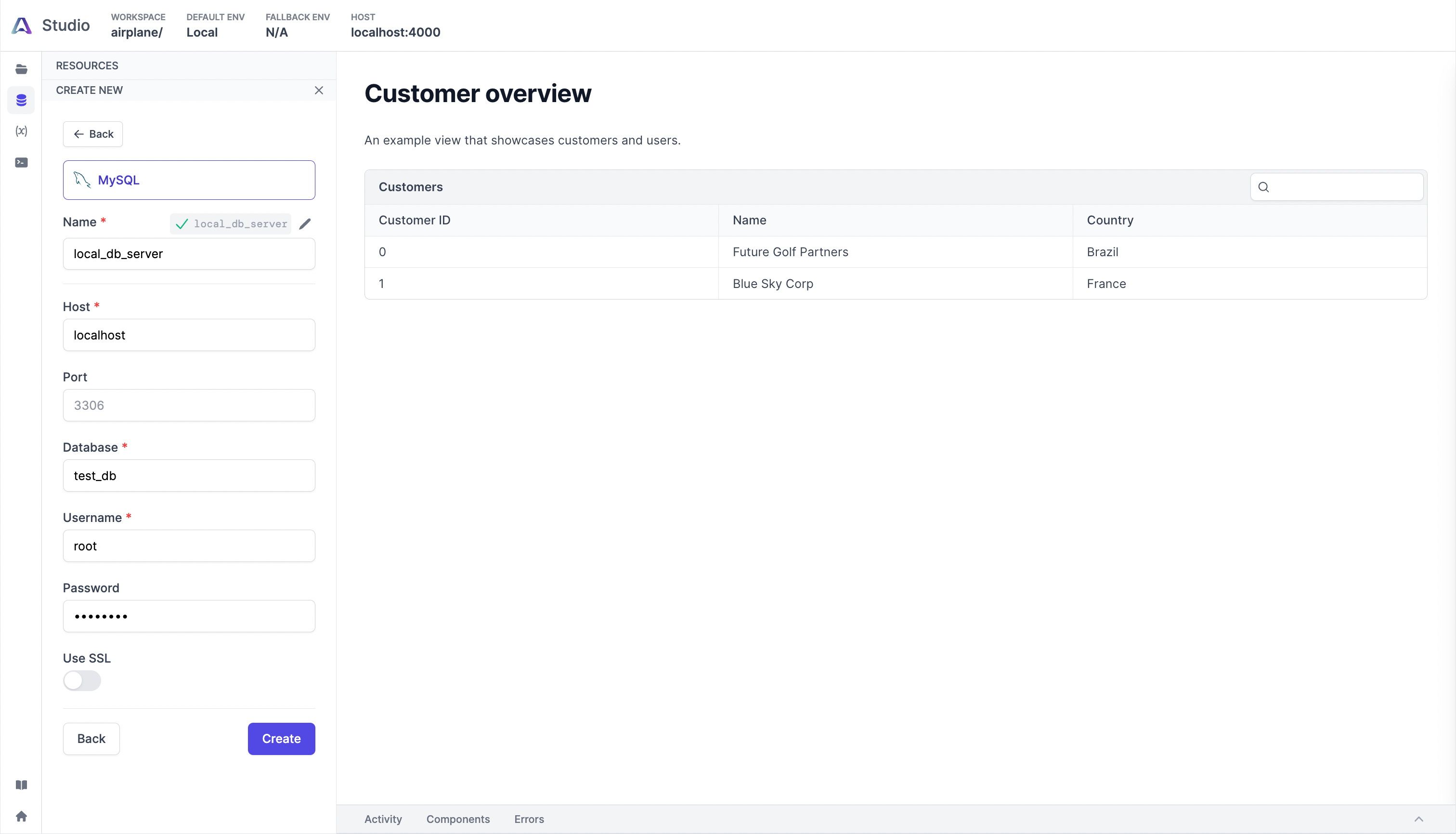

After choosing the MySQL option, we'll be prompted to fill out a form that sets our database details. Use
local_db_server as the name and
test_db as the database. Set other options according to the environment, then click the Create button:
Once we have connected our database, let's create Airplane Tasks to populate our View.
Creating Airplane Tasks to populate the View
Run the following command to create the first task:
After, we'll be prompted to enter details about the task. Use the values of the following example as a guide:
Once the task is created, replace the contents of
mariadb_gui/fetch-customers.sql with the following:
Then replace the contents of
mariadb_gui/fetch-customers.task.yaml with the following:

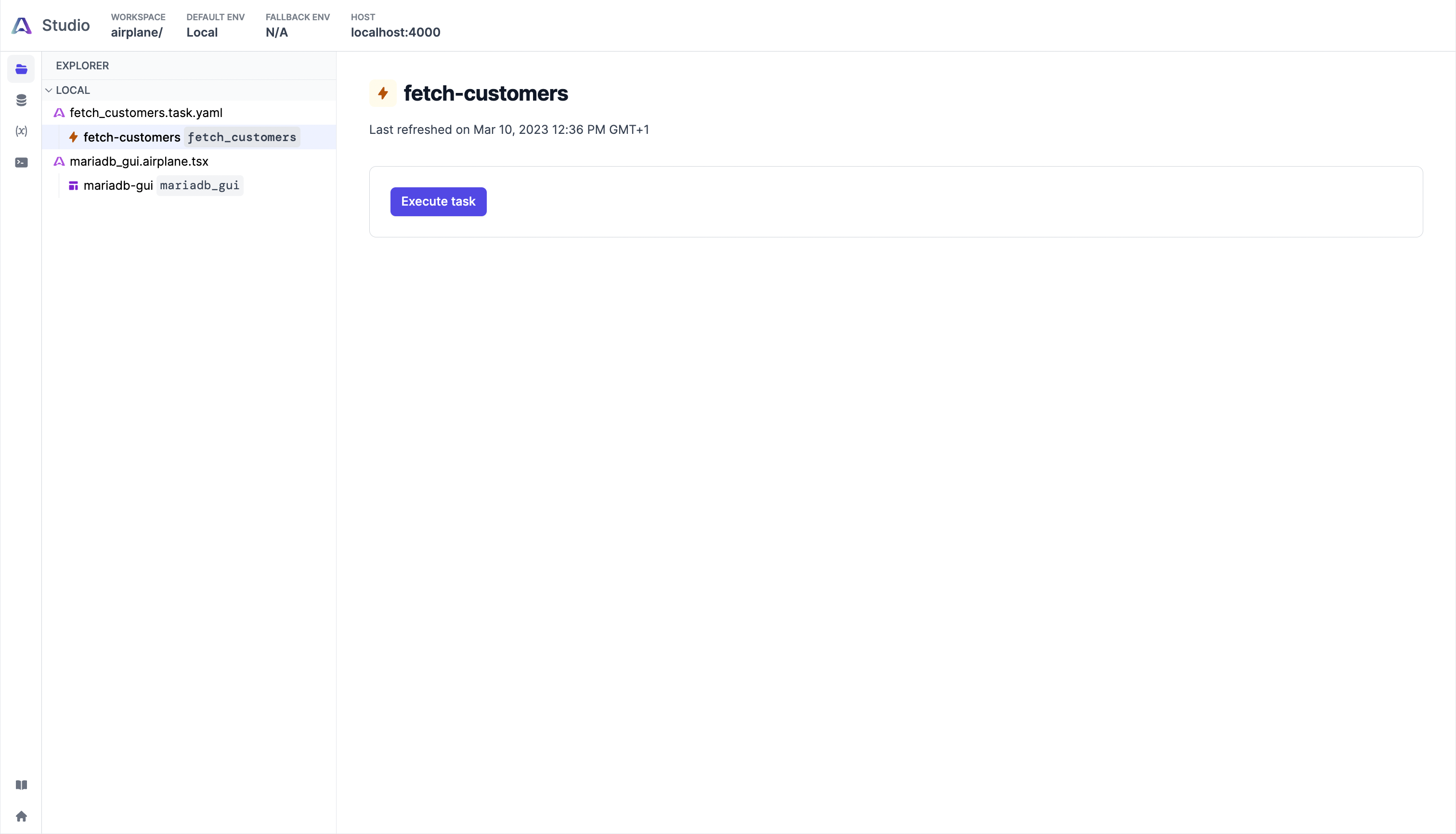

If we navigate to the Airplane Studio, we should see the new task under

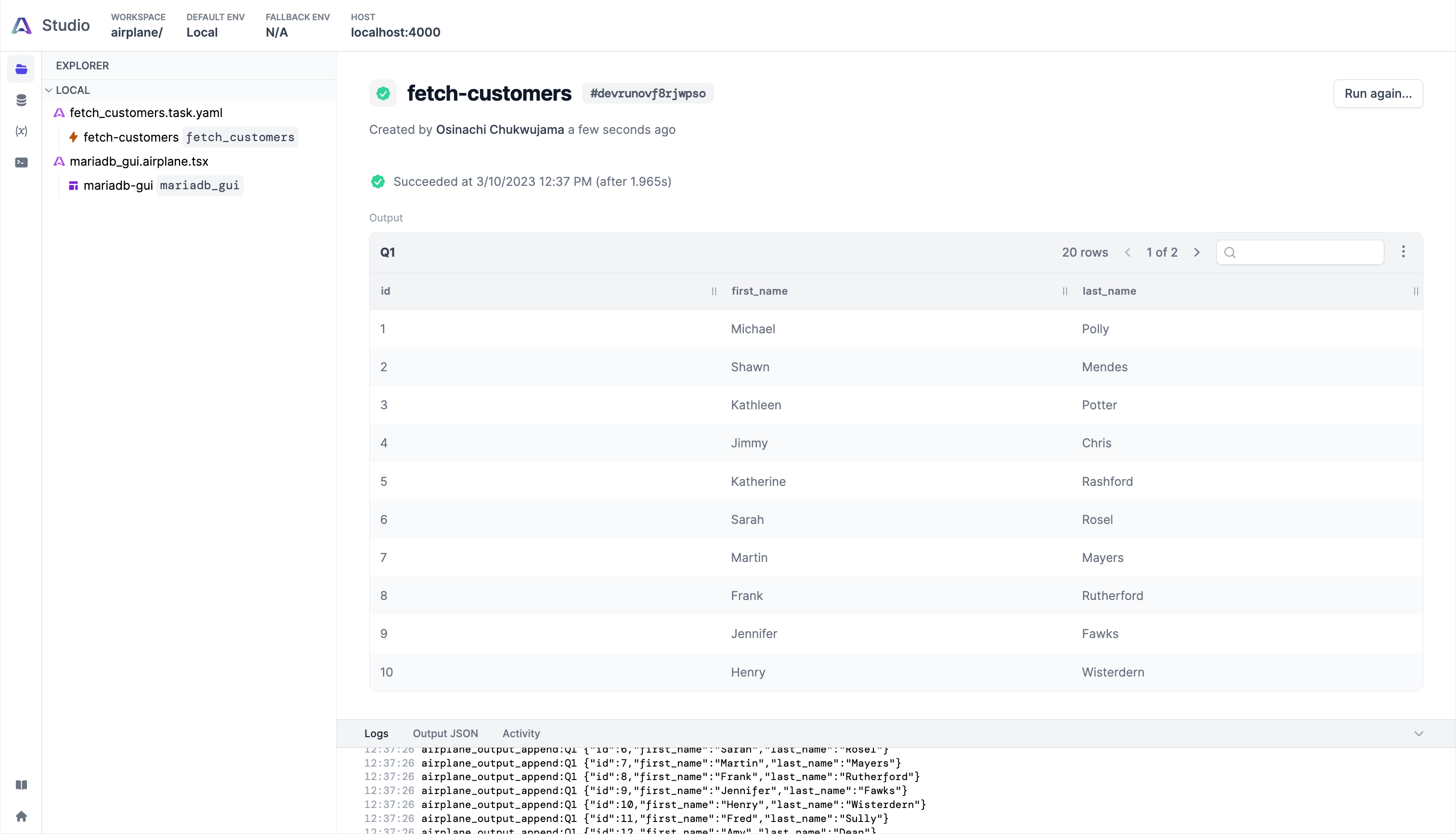

Next, click the Execute task button to see a tabular output of this task:
So far, we've handled the "read" part of CRUD for the
customers table. To add the create, update, and delete functionalities, we need to add the associated
.task.yaml files to the root directory (
airplane/). The links to the necessary files for the other operations are the following:

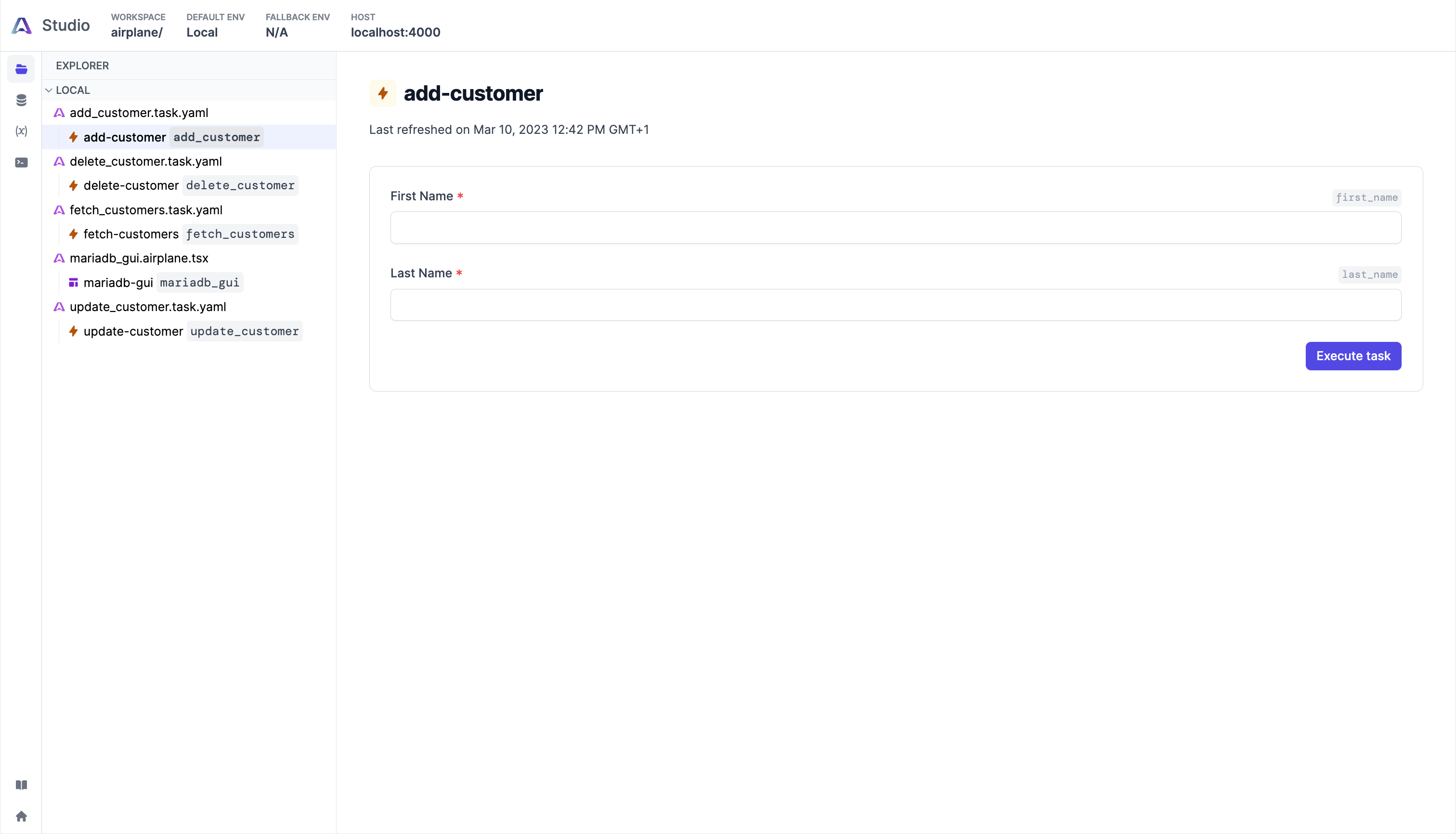

After adding these tasks, we should see them on the Airplane dashboard. Test each task by creating a customer, updating the record, and then deleting that record:
We can use all the CRUD tasks individually, but this would be time-consuming due to the extra steps required to click and execute them. To simplify the process, let's bring everything together with the
Bringing all the CRUD functionalities together
To add the CRUD functionalities to an Airplane View, we will need a table for displaying fetched records, a form for creating new records, and two buttons for updating and deleting records. To add these functions, replace the contents of
mariadb_gui.airplane.tsx with the following:
The code in this View uses the
fetch_customers task to display customer records and uses the
update_customer task to update changes that were made. Note that we can set a column as editable using the
canEdit property, allowing the update operation to work when we change the data in the editable columns.

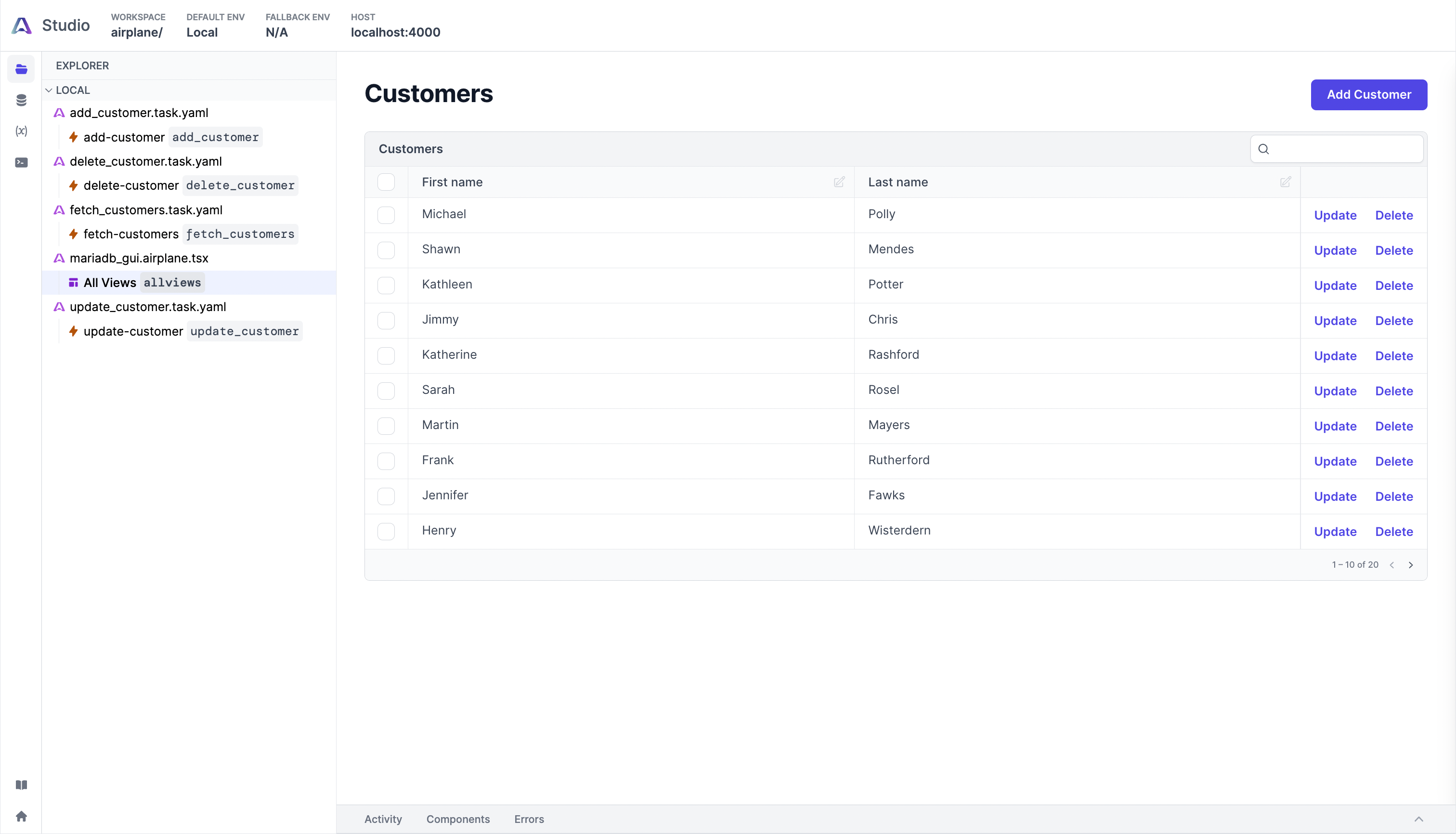

Form component serves as a tool for adding new customer records. In the UI, we should see the
customers table with CRUD functions as part of the All Views View under the
Adding other tasks and tables
Let's now add tasks and Views for the
payments tables created earlier. The corresponding
.task.yaml files for the CRUD operation tasks are listed below:
- Create order: SQL, YAML
- Create payment: SQL, YAML
- Fetch orders: SQL, YAML
- Fetch payments: SQL, YAML
- Delete order: SQL, YAML
- Delete payment: SQL, YAML
This tutorial uses a single View for all CRUD tables. While we can separate the CRUD tables for
payments, combining them in one View makes it easier to view and manage each table.
Now let's add the two CRUD tables to our View. Replace the contents of
mariadb_gui.airplane.tsx with the contents of this file.

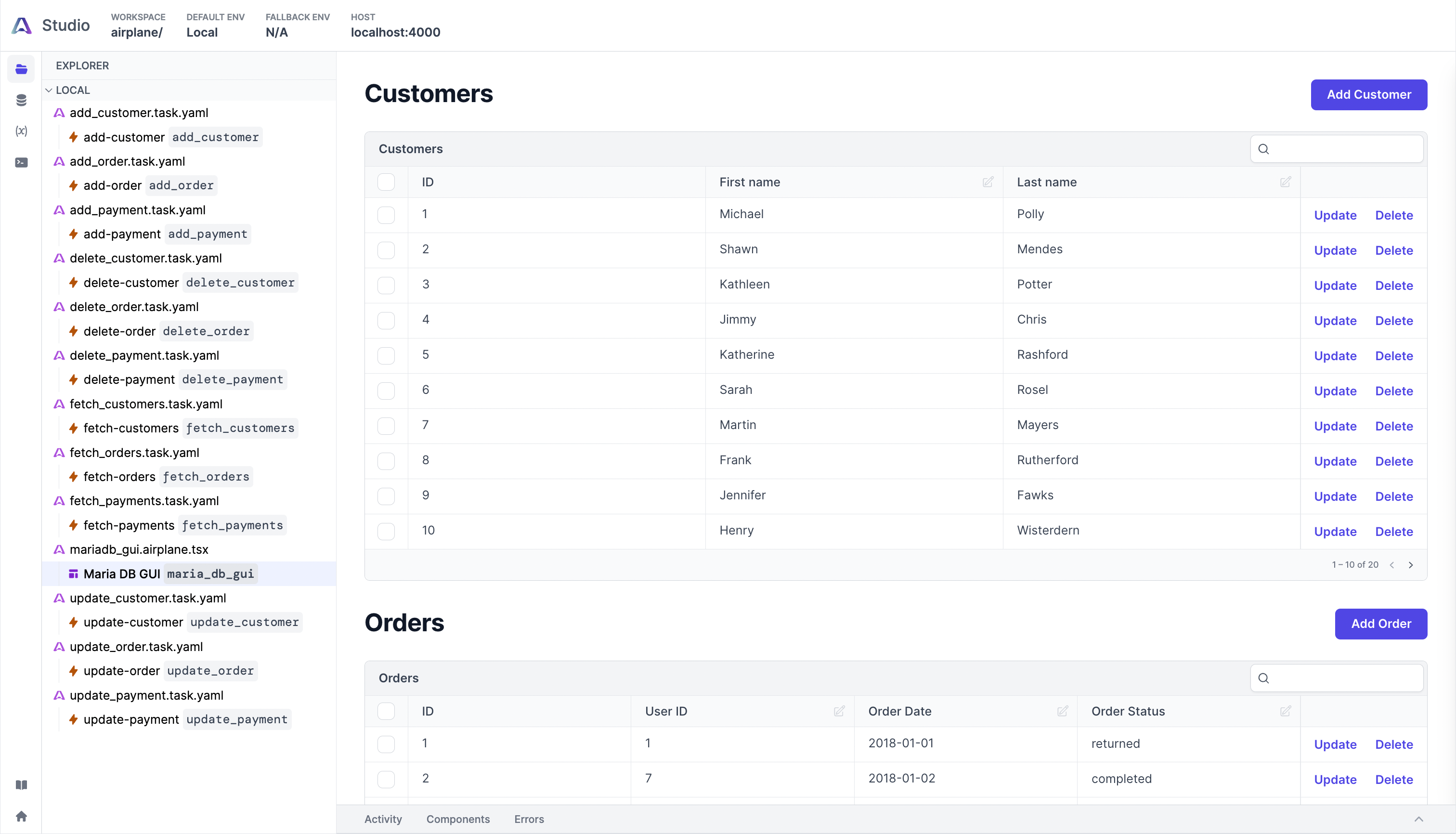

When completed, the Airplane Studio should look like this:
Organizations of all sizes use databases to organize and manage their data. A centralized view of all databases can offer a seamless way to access and manage data.
